PRODUCT INFORMATION

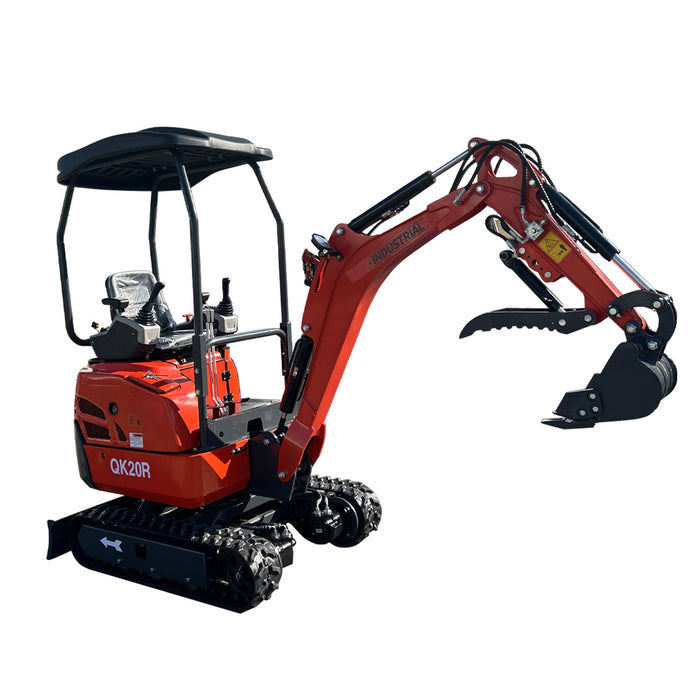

1 Ton, RATO Engine Mini Excavator | QK20R

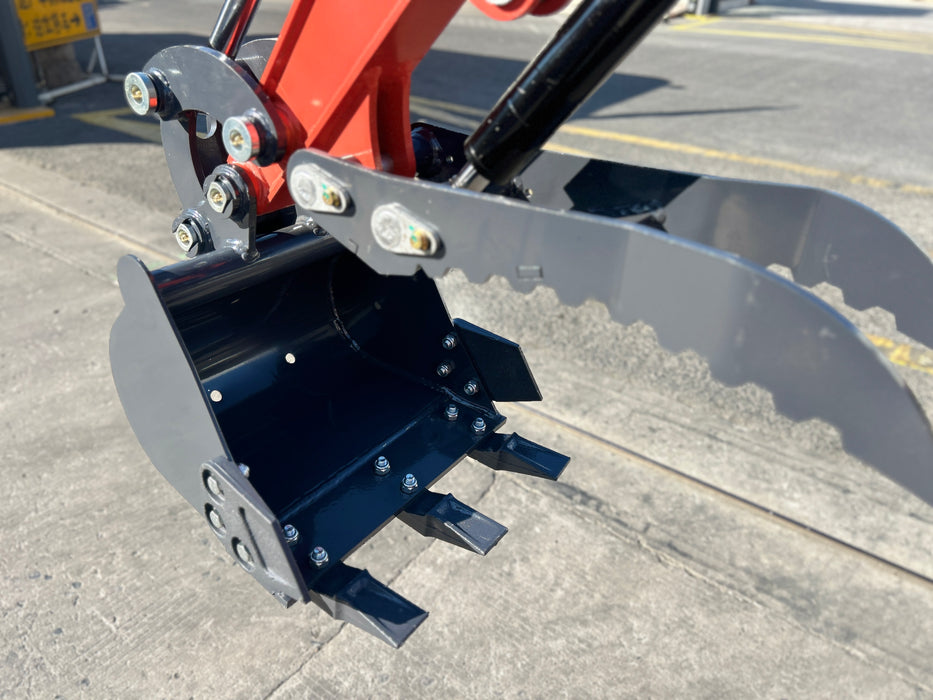

The QK20R Mini Excavator is a compact yet powerful machine designed to handle demanding tasks in tight working environments. Ideal for digging, trenching, and material handling, the QK20R combines strength, precision, and operator comfort. Its hydraulic thumb, side swing boom, and enclosed cab with air conditioning make it a highly versatile choice for residential contractors, farmers, and landscapers who need reliable performance day after day.

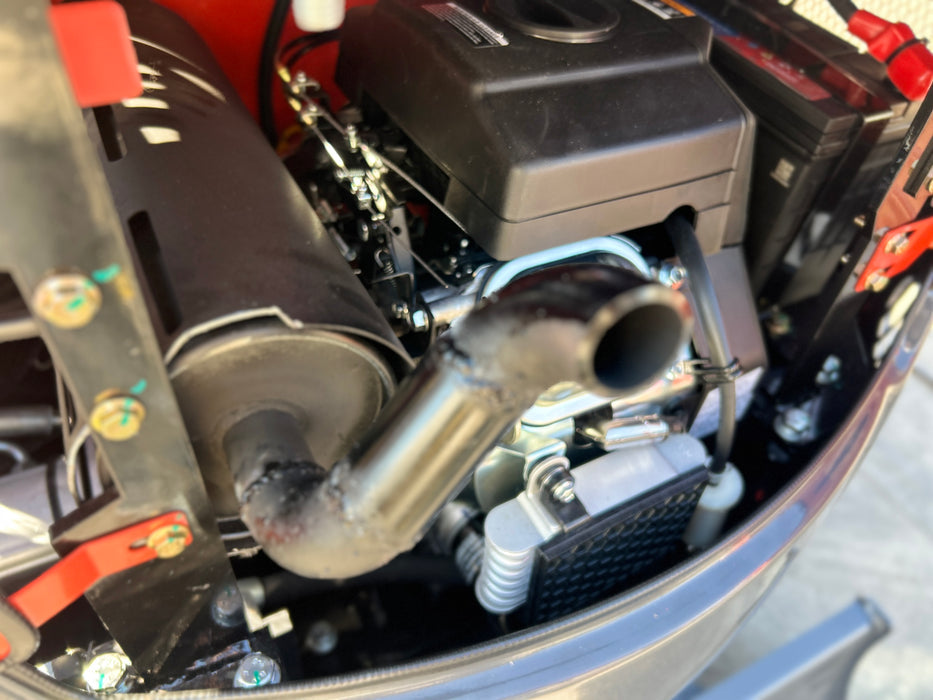

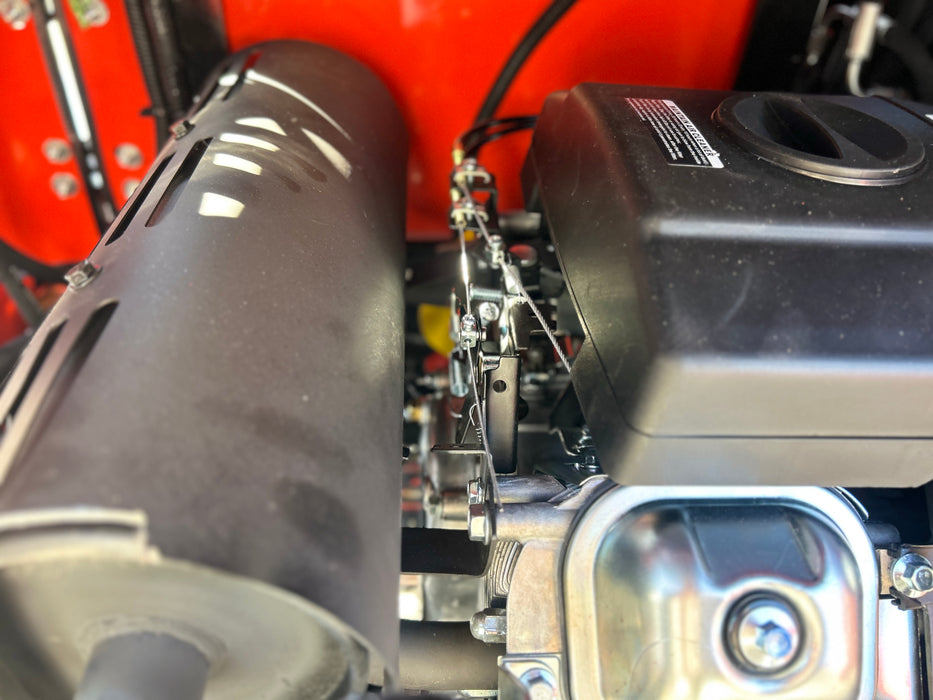

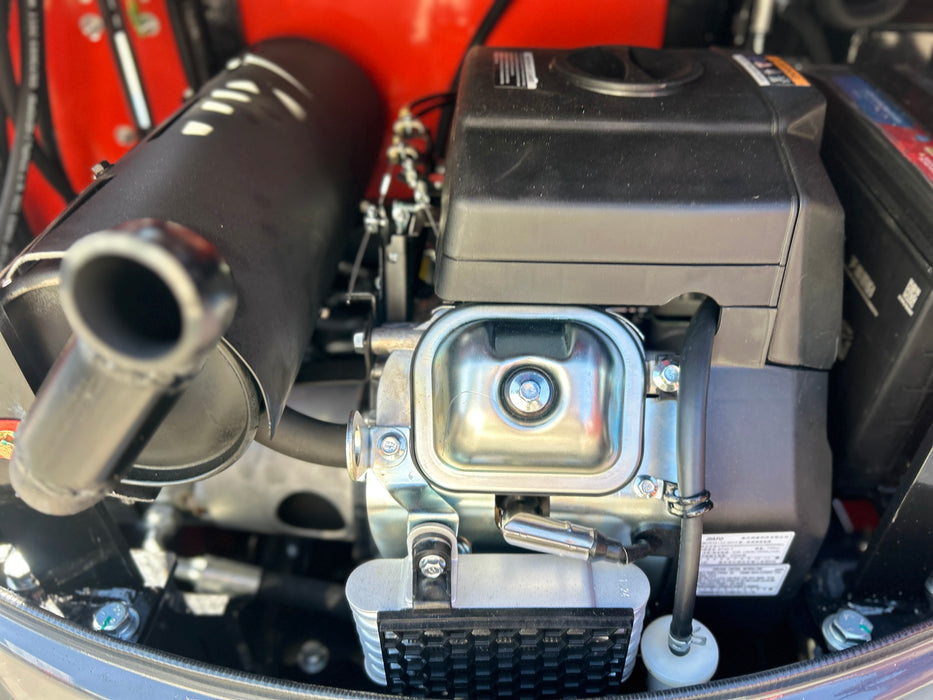

Powered by a robust 23 HP RATO gasoline engine, the QK20R offers smooth operation and high fuel efficiency. Its rugged build, combined with advanced hydraulic controls and EPA-certified compliance, ensures long-term durability and efficiency across a wide range of job sites.
Technical Data:
- Operating Weight 980 kg
- Bucket Capacity 0.03 m³
- Max Digging Depth 1,693 mm
- Max Digging Height 2,560 mm
- Max Dumping Height 1,800 mm
- Min Swing Radius 3,060 mm
- Max Climbing Angle 15°
- Travel Speed 0–1.8 km/h
Engine:
- Engine Model RATO Gasoline Engine
- Rated Power 23 hp (16.8 kW)
- Fuel Type Gasoline (#92)
- Fuel Tank Capacity 6.6 L
Hydraulics:
- Hydraulic Pump Type Gear Pump (GP510803)
- Hydraulic Flow 21.6 L/min
- System Pressure 25 MPa
- Auxiliary Hydraulic Thumb Standard
- Multi-Circuit Valve 4 Mechanical + 4 Hydraulic
- Rotary Hydraulic Motor BM2-315

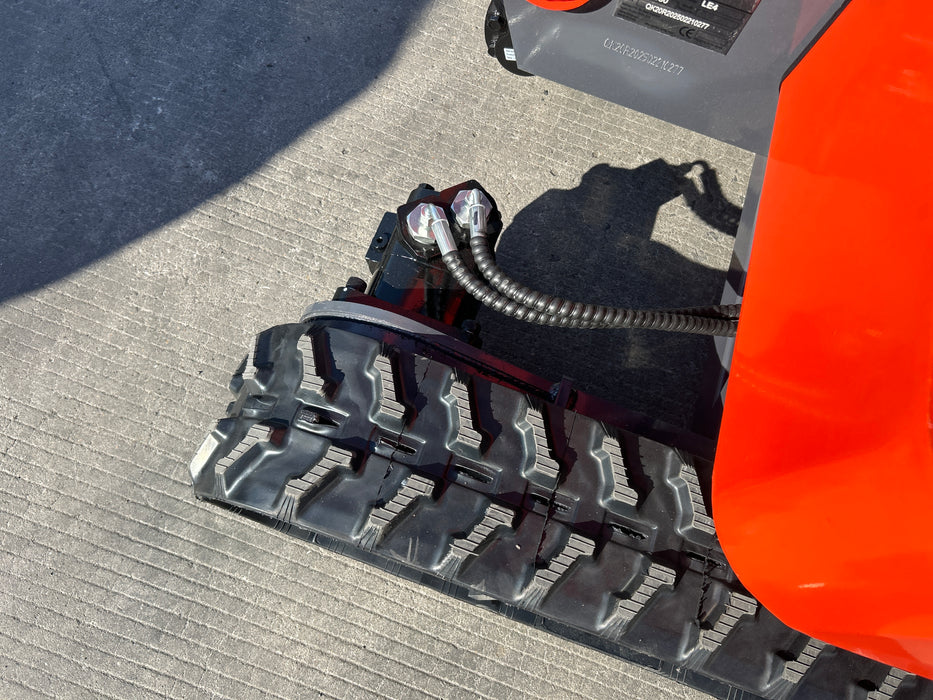

- Traveling Hydraulic Motor BM6-315
Dimensions:
- Overall Length 2,925 mm
- Overall Width 958 mm
- Overall Height 2,422 mm
