PRODUCT INFORMATION

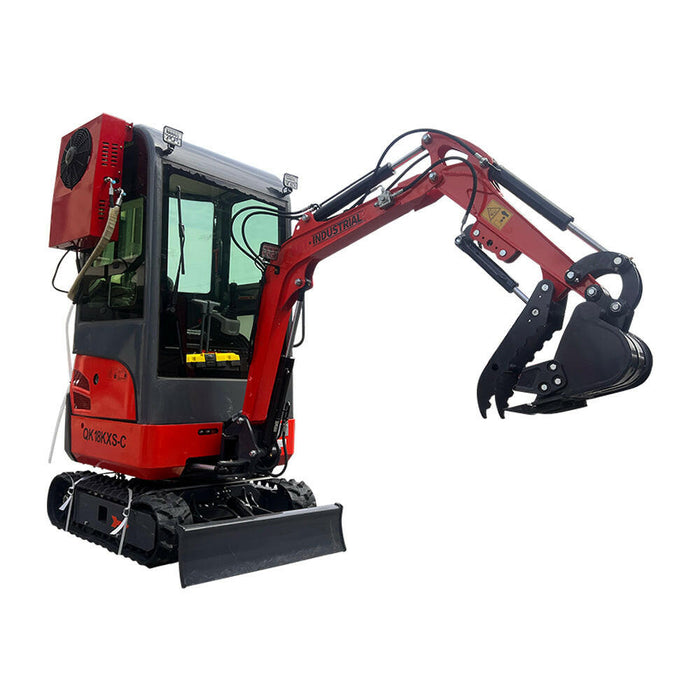

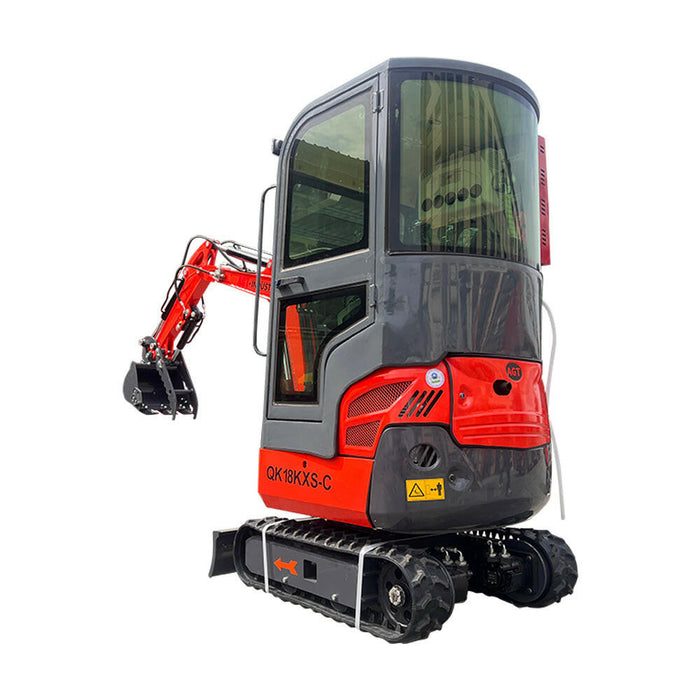

1-Ton, Kubota Engine Mini & Small Excavator w/Air Conditioning, Side Swing & Enclosed Cab | AGT-KH18K-CC
AGT-KH18K-CC, with a 1-ton operating weight and 5.41-foot digging depth, is compact and reliable for maneuvering in tight spaces like farms, gardens, and parks, offering features like air conditioning, side swing, and an enclosed cab for a dust-free and comfortable work experience.
2024 Model
Technical Data:
- Operation Weight: 1 Ton
- Engine: Kubota Diesel Engine
- Equipped with Air Conditioned Enclosed Cabin
- Equipped with Side Swing
Engine:
- Brand: Kubota
- Model: D722
- Type: 3-cylinder diesel engine
- Power Output: 10.2 kW
- Maximum Speed: 3,600 RPM
- Emissions Compliance: Tier 4
Performance:
- Operating Weight: 980 kg (2,160 lbs)
- Maximum Digging Depth: 1,693 mm (66.7 inches)
- Maximum Digging Height: 2,560 mm (100.8 inches)
- Maximum Loading Height: 1,800 mm (70.9 inches)
- Minimum Rotation Radius: 3,060 mm (120.5 inches)
- Travel Speed: 0-1.8 km/h
- Climbing Ability: 15°
Dimensions:
- Overall Length: 2,925 mm (115.2 inches)
- Overall Width: 958 mm (37.7 inches)
- Overall Height: 2,422 mm (95.4 inches)
Hydraulic System:
- Main Pump Type: GP510803
- Rated Set Pressure: 25 MPa
- Maximum Flow Rate: 21.6 L/min
- Multi-Circuit Valve: 4 mechanical + 4 hydraulic
- Rotary Hydraulic Motor Type: BM2-315
- Traveling Hydraulic Motor Type: BM6-315
Additional Features:
- Cabin: Enclosed with air conditioning
- Side Swing: 30° angle
- Bucket Capacity: 0.03 m³
Specific Data:
Operation Weight 980kg Engine Kubota（D722） Travel speed low/high (km/h) 0-1.8 Capacity of bucket 0.03 m³ Max Digging Depth 1693mm Max Digging Height 2560mm Max Load Height 1800mm Min Rotation Radius 3060mm Max Angle of Climb 15° Side Swing Angle 30° Total length 2925mm Overall width 958mm Total Height 2422mm Maximum speed (rpm) 3600 Rated set pressure (Mpa) 25 Maximum power 10.2 Main pump type GP510803 Maximum flow rate of main pump(L/min) 21.6 Multi circuit valve 4 mechanical + 4 hydraulic Rotary hydraulic motor type BM2-315 Traveling hydraulic motor BM6-315
