PRODUCT INFORMATION

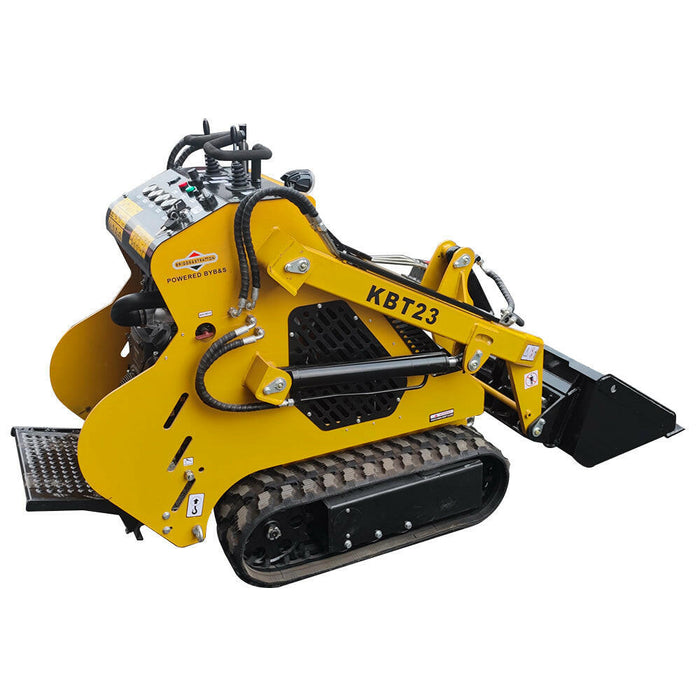

Learn about the KBT23 mini skid steer loader - a versatile power loader tailored to accomplish challenging tasks in tight spaces!
This powerful machine is a compact 860kg machine that can effortlessly maneuver through tight project areas at speeds of up to 5.5km/hour and conquer slopes of up to 30°.
Technical Data:
- Operation Weight: 0.95 Ton
- Engine: B&S
- Max Angle: 30 Degree
Specific Data:
| Max Load Capacity | 200 kg |
| Bucket Capacity | 0.15 m³ |
| Maximum Lift | 375 kg |
| Traveling Speed | 0-5.5 km/h |
| Rated Pressure | 16Mpa |
| Lifting Time | 4.3 s |
| Descent Time | 3.3 s |
| Tipping Time | 1.5 s |
| Maximum Angle of the climb | 30° |
| Total Weight | 860 kg |

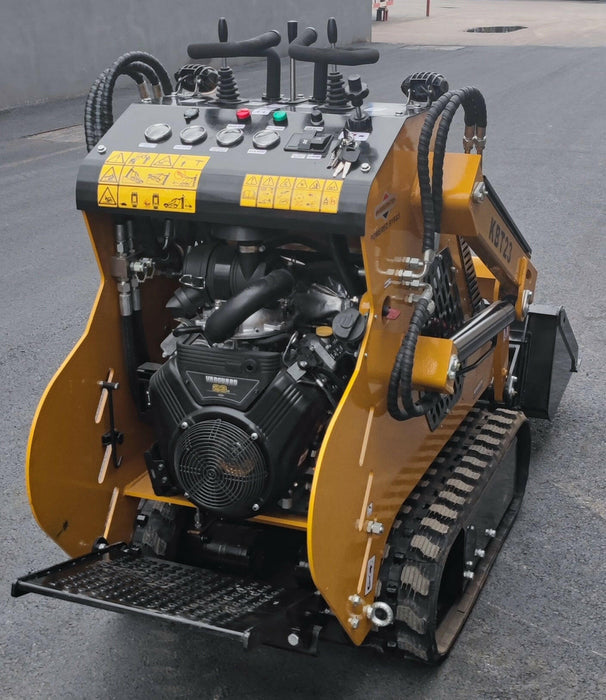

Engine parameter
| Engine | B&S engine |
| Engine type | gasoline, V-double cylinder |
| Output power | 16.8KW(23HP)/3600rpm |
| Fuel consumption | ≤6.7 L/h |
| Starting mode | Electric start |
Tank capacity
| Fuel Tank Capacity | 25 L |
| Hydraulic Tank Capacity | 25L |
| Engine oil tank capacity | 1.7 L |
