PRODUCT INFORMATION

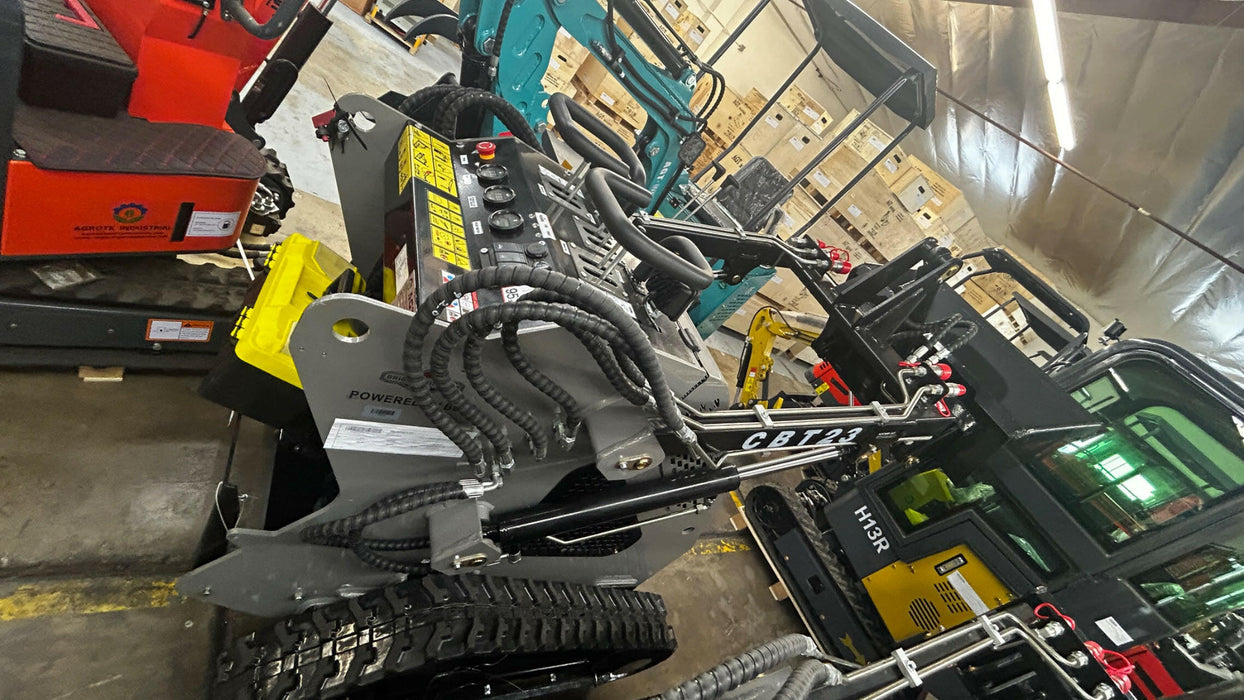

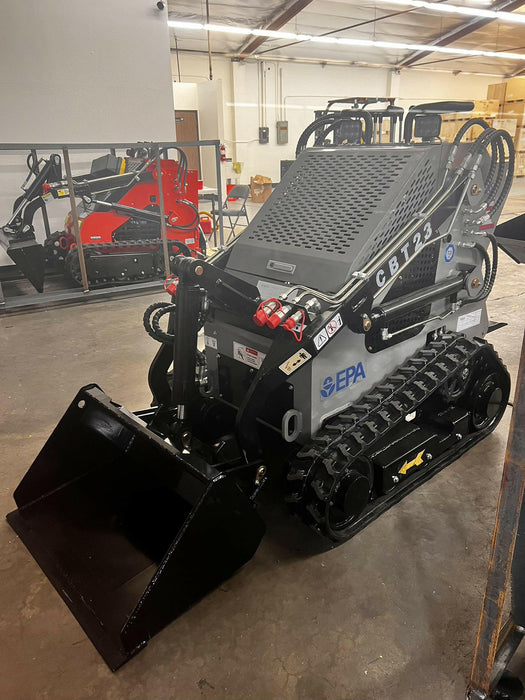

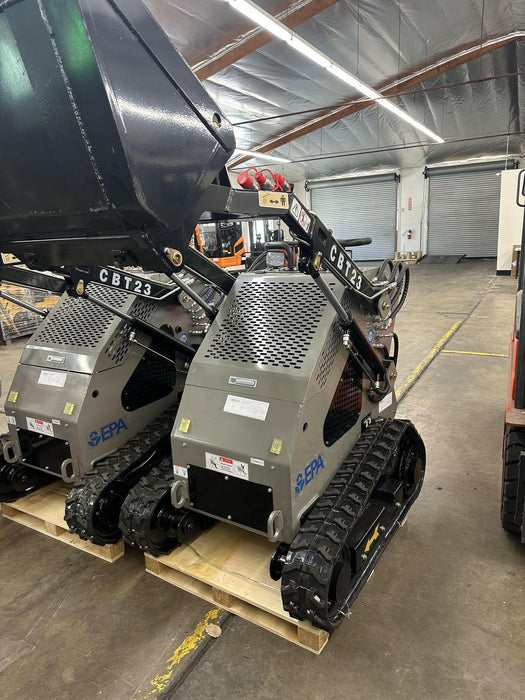

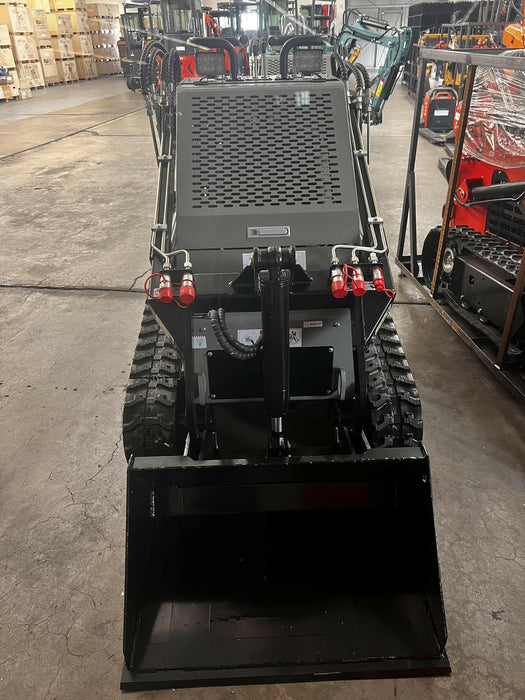

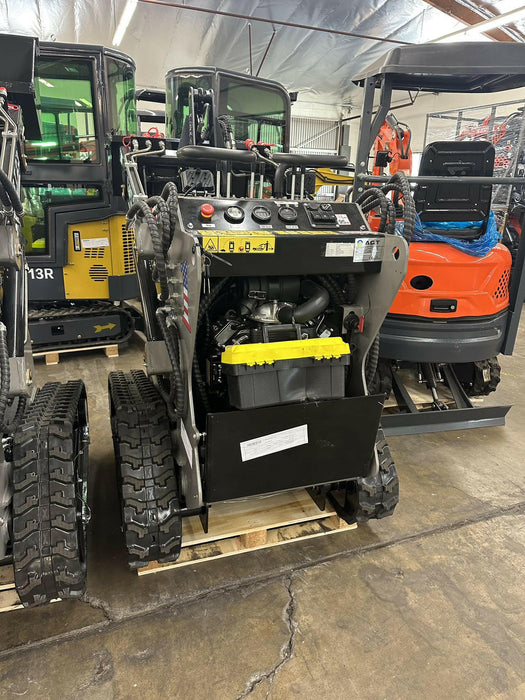

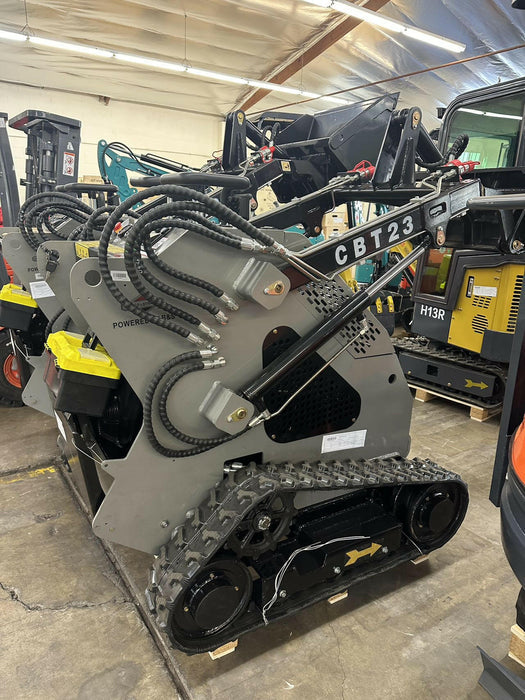

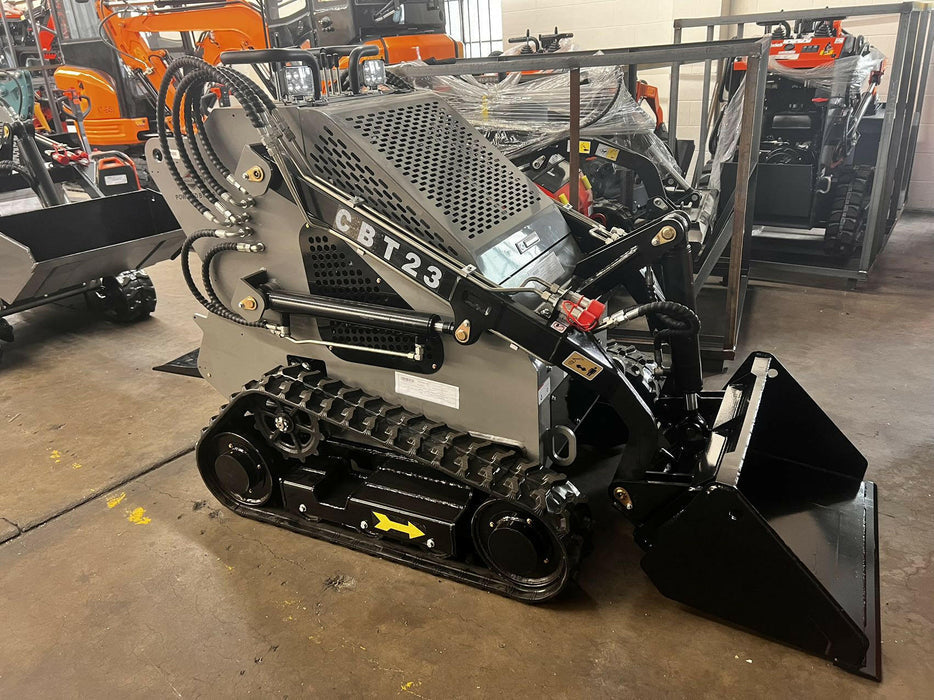

The CBT23 is a compact 1-ton stand-on skid steer loader powered by a 23 HP Briggs & Stratton engine. It delivers 484 lb lift capacity, 63-in lift height, 2.5 mph speed, and robust hydraulics—perfect for tight-access jobs.
Basic Performance:
- Rated Loading Capacity: 484 lb
- Overall Weight: 2094 lb
Fluid Capacities:
- Fuel Tank Capacity: 6.83 gallons
- Hydraulic Oil Tank Capacity: 8.72 gallons

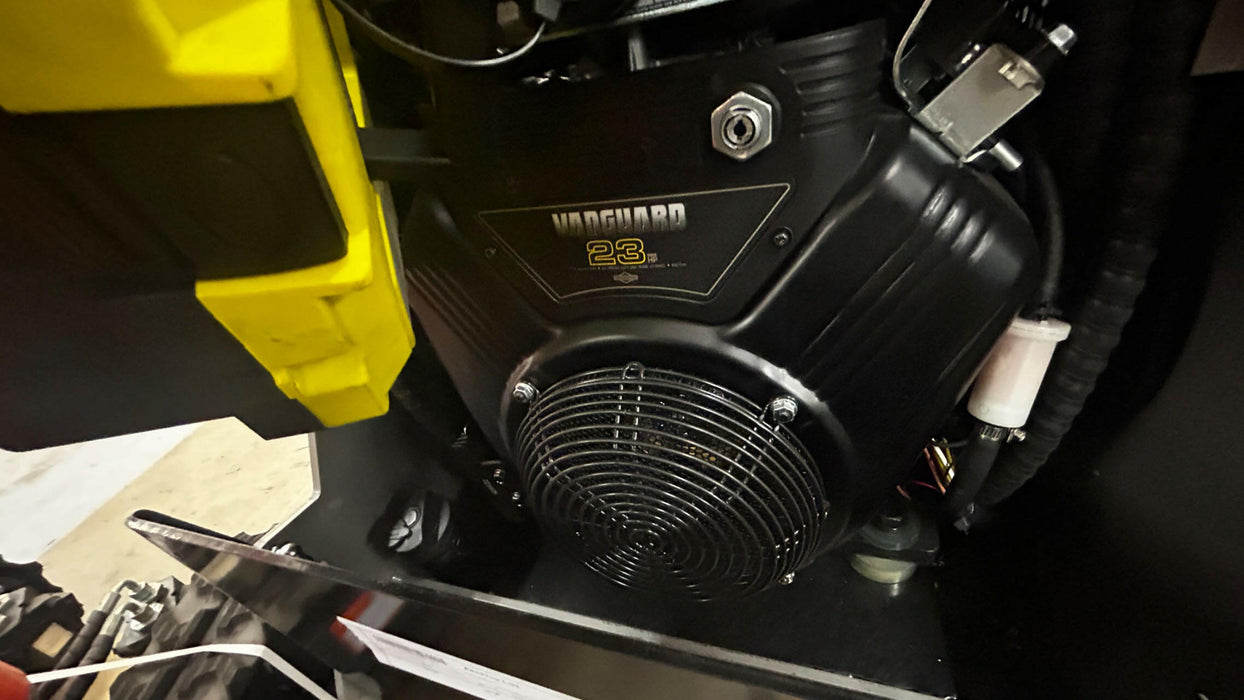

Engine:
- Model: B&S XR
- Rated Power: 23
- Maximum Torque: 34.39 lb-ft
- Number of Cylinders: 2
- Emission Standard: EPA II
Operating Range:
- Maximum Unloading Height: 63.46 inches
- Unloading Distance (at maximum height): 24.05 inches
- Maximum Height of Bucket Pivot Pin: 91.77 inches
- Unloading Angle at Maximum Height: 23°
- Bucket Tilt Angle at Full Height: 105°
- Bucket Tilt Angle on Ground: 18°
Travel Performance:
- Maximum Travel Speed: 2.48 mph
- Track Width: 40.55 inches
- Climbing Ability: 25%
Hydraulic System:
- Main Pump Type: Gear Pump
- System Safety Pressure: 22 MPa
- Maximum Flow of Main Pump: 75.6 L/min
